System components

• Fencing panel.
• Plastic feet.
• Steel clamp.
• Fence gate



Detailed specifications

• Material: galvanized tubular steel tube.
• Surface treatment: hot dipped galvanised.
• Steel pipe spacing: 65 mm, 70 mm or 100 mm maximum.
• Feet type: Plastic feet or metal feet.
• Distance from frame bottom to ground: maximum 100 mm.



Table 1: Common Specifications of Pipe Infill Temporary Pool Fencing
Item	Frame size	Top/bottom pipe size	Infill size	Fence size (L × H)
PTPF-01	32 mm O.D.	25 mm O.D.	14 mm O.D.	2300 mm × 1350 mm
PTPF-02	42 mm O.D.	32 mm O.D.	25 mm O.D.	2400 mm × 1300 mm
PTPF-03	38 mm O.D.	32 mm O.D.	19 mm O.D.	2400 mm × 1200 mm

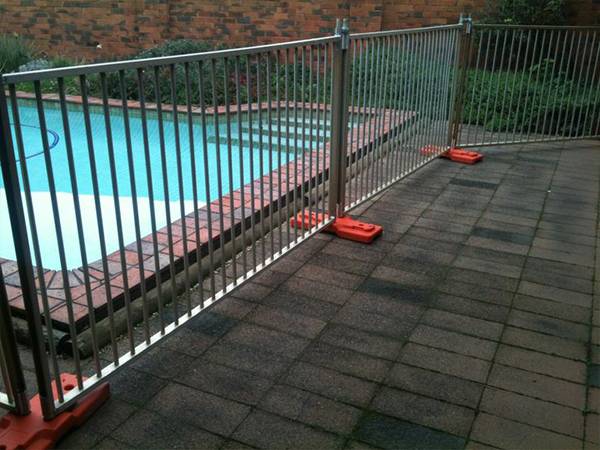

Temporary pool fencing panels

This type temporary fencing panels are constructed of pipe infills and square or round frame pipes, which is different from temporary fencing with rod pipe infills.

• Comply with council pool fencing regulations and Australian standards.
• Supply temporary protection and enclosure while waiting permanent fencing.
• Excellent children and pet protection.
• 360° full welding for optimum strength.
• Flattened bottom for easy welding, stacking and transporting.
• No more than 100 mm consist gap from bottom frame to the ground.
• The surface treatment can be hot dipped galvanized or powder coating.
• Steel plate supplies firm foundation even used as permanent fencing.
• Bolt-down design can supply further stability for pool fencing system.
• Smooth surface without any no burrs and sharp edges for safe installation and use.



Plastic feet

• Orange and other colorful plastic feet supplies highly visible view.
• UV stabilizer and anti-aging agent added for stability and long service life.
• Concrete inserted to withstand high wind even in the harshest environments.



Self-closing temporary pool gate

• Secure the pool area until a permanent fence is built.
• Latch opening gate allows for easy access.
• Unique design to ensure the safety of small children and prevent children from climbing up.
• Further heighten safety and security of the pool construction site.



Detailed specifications

• Material: galvanized steel tubular.
• Panel size: 2100 mm (H) × 995 mm.
• Frame: 32 mm O.D.
• Infills: 25 mm infills.
• Infill rod height: 1345 mm.
• Infill bar spacing: 60 mm, 70 mm, 100 mm (maximum).
• Feet: metal or plastic.
• Distance from bottom panel edge to the ground: max. 100 mm.
