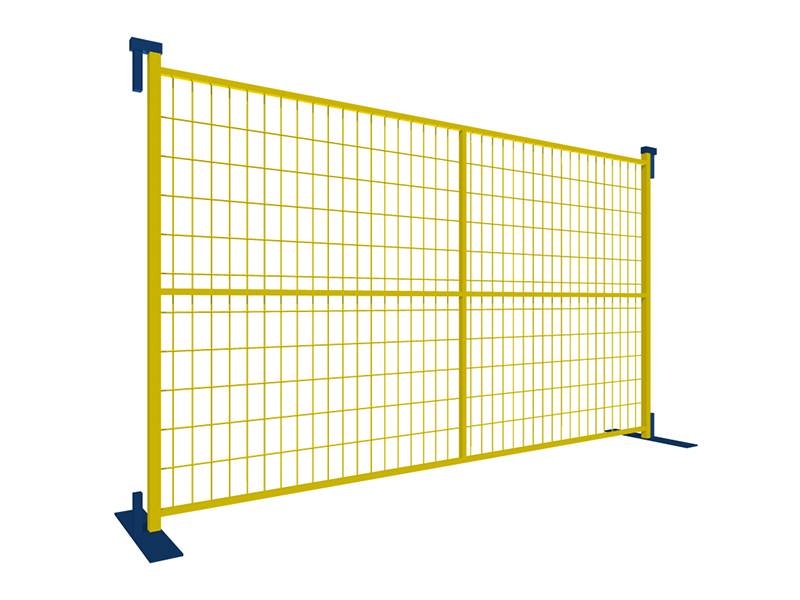

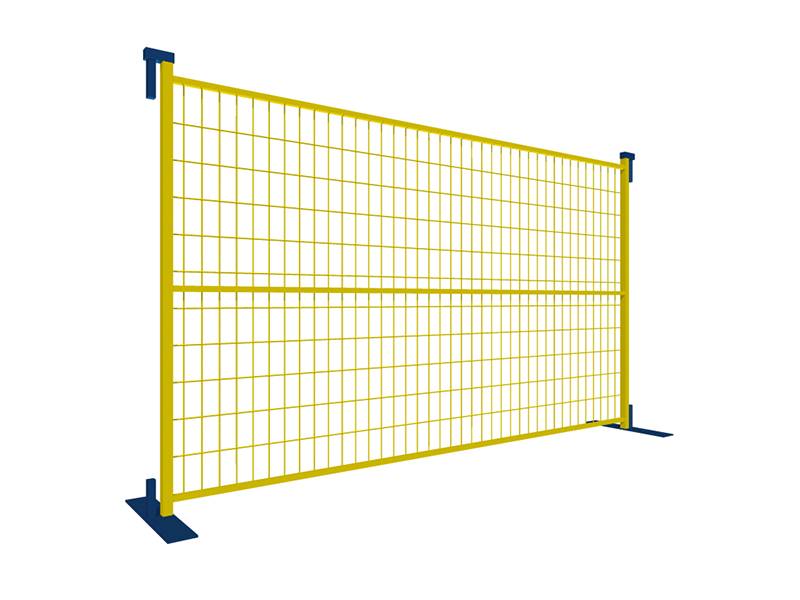

6 FTx 10 FT CA Temporary Fencing
The 6' × 10' CA temporary fencing features a 6' height and 10' width, made from high-quality mild steel wire and tubes, welded using high-frequency technology. It undergoes strong corrosion treatment with electric galvanizing before powder coating or hot-dip galvanizing after welding, ensuring a service life of up to 10 years. With a wire diameter of 4.0mm, an outer frame diameter of 30 × 30mm, and a middle horizontal pipe diameter of 25 × 25mm, this durable, welded Canada temporary fencing provides excellent security and privacy for any site.
Contact Info
Product Details
System components
Specifications
| Panel specification | |
|
Dimensions (H × W) |
6' × 10' (equal to 1.8 × 3 m). |
| Wire diameter | 4.0, 6.0 mm optional. |
| Mesh opening | 50 ×100, 50 ×150, 75 ×150 mm optional. |
| Frame O.D. × TH | 30 × 30 × 2, 40 × 40 × 2 mm optional. |
| Frame TH | 2.0–2.5 mm. |
| Middle horizontal pipe O.D. | 25 × 25 × 2 mm. |
| Surface treatment |
Electric galvanized before powder coated. Hot dipped galvanized after welding. |
| Color | Dark green, yellow, red, blue, other RAL colors. |
| Fence feet Specification | |
| Material | Steel plate, steel solid rod, steel pipe. |
| Dimensions (H × W × TH) |
600 × 110 × 8, 900 × 80 × 7 mm optional. |
| Hole size O.D. | 19 mm. |
| Interior round steel rod/pipe | 30 mm O.D. × 150 mm H. |
| Exterior square steel rod/pipe | 30 × 30 × 150 mm. |
| Rod space | 30 mm. |
| Surface treatment | Electric galvanized before powder coated. |
| Clamp Specification | |
| Material | Steel plate, steel solid rod, steel pipe. |
| Coupler top plate/pipe | 110 × 40 × 8 mm. |
| Left round steel rod/pipe | 30 mm O.D. × 150 mm H. |
| Right square steel rod/pipe | 30 × 30 × 150 mm H. |
| Surface treatment | Electric galvanized before powder coated. |
| Clamp Specification | |
| Clamp center distance | 80, 90, 100 mm optional. |
| Applied post O.D. | 25, 28, 32, 38, 40, 42 mm optional. |
| Clamp TH | 4 mm. |
| Bolt | Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter. |
| Nut | 15.9 mm, 17 mm optional. |
| Surface Treatment | Hot dipped galvanized. |
| Weight | 0.42 kg/set. |
| Accessory List | 2 pieces clamps with 1 bolt and 1 nut. |
6' × 10' Canada Temporary Fencing Panels
- Manual welding. Stick to manual welding for the purpose of the most appropriate strength.
- 360° full welding. Make sure a firm welded structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in bad environment.
-
Smooth surface and no burrs. Eliminate every little bit of burr is the essential process. This is for prevent any scratch during set up and tear down.
CAT-04: Manual welding
CAT-05: 360° full welding point
CAT-06: Smooth surface and no burrs
Strong corrosion resistance surface treatment.
- Electric galvanized before powder coated. This can not only guarantee the fastness of galvanized coating to prevent the corrosion of acid rain and ultraviolet radiation, but also make the temporary fencing have good aesthetic effect.
- Hot dipped galvanized after welding. To ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.
CAT-07: Powder coated CA temp fence panel
CAT-08: Hot dipped galvanized CA tempfence panel
Various colors are available. We can provide variety of colors by powder coated surface treatment. Such as red, yellow, blue, gray, black, green, etc.
CAT-09: Red.
CAT-10: Blue.
CAT-11: Dark green.
CAT-12: Orange.
CAT-13: Yellow.
CAT-14: Grass green.
Production process
Galvanized steel wire – Straighten & cut short – Welded – Parkerising – PVC coated/sprayed – Packing – Shipment
Low carbon steel wire – Straighten & cut short – Welded –Hot-dipped galvanized – Packing – Shipment
CAT-15: Steel pipe for Canada temporary fence
CAT-16: Manual welded frame of CA temp fence
CAT-17: Electrostatic spraying plant
CAT-18: Hot-dipped galvanized plant
CAT-19: Packed Canada temporary fence
CAT-20: Canada temporary fence shipment
Platy Steel Base
- No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes to peg the footing on the ground when the install completes.
- Adapt cement or asphalt areas. With good regional adaptability, the ground is not required to be absolutely flat, neither cement or asphalt areas.
- Stable enough. Technical staff will give a reliable advice of platy fencing feet size according to the panel dimensions.
- Three different styles are available. We provide following three types of base connector clip for your standard and special demand.
CAT-21: Round and square steel rod fence feet
CAT-22: Round and square steel pipe fence feet
CAT-23: CA temp fence with added fasteningpipe
Top Clips
A special fencing coupler which popular in Canada and North America, it gives a secure clamp to the CA temporary fencing. In addition, it provide a flexible isolation angle for requirement of rapid re-configuration of the construction area.
Two different styles are available. We provide following two types of top clips for your standard and special demand. Warm Tip: the pipe leg can be replaced by a round rod by your request.
CAT-24: Top clip with round steel pipe
CAT-25: Top clip with round & square pipe
Easy installation. Just need to insert its legs to the fences.
CAT-26: Assembled top clip of Canada temporary fence
Packing details
Canada welded temporary fencing panels are delivered in steel pallets, different loading quantityaccording to different goods and container sizes.
Production Process
01 / 10
Raw Material Purchase
02 / 10
Raw Material Inspect
03 / 10
Mesh panel design and planning
04 / 10
Mesh panel production preparation
05 / 10
Mechanical drawing of wire mesh
06 / 10
Welding
07 / 10
Frame welding
08 / 10
Coating treatment
09 / 10
Finished product inspection
10 / 10
Packaging and warehousing
