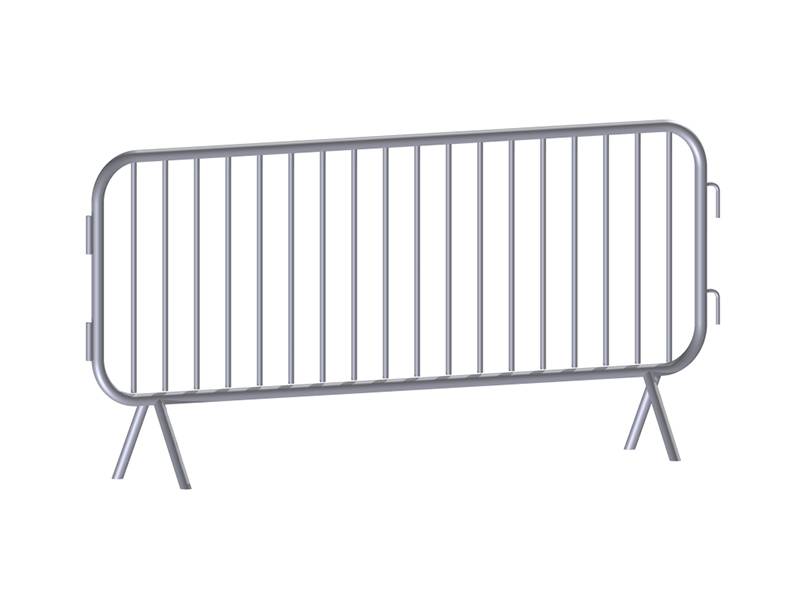

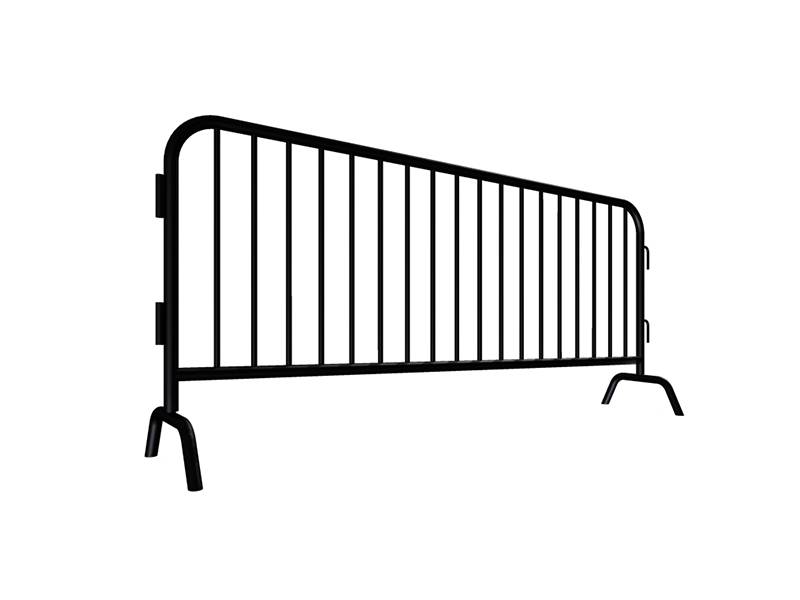

90"L x 42" H Heavy Duty SteelBarricades
In recent years, it is difficult in ensuring the safety of pedestrians in construction sites, scenic area, public events and pedestrian traffic. our wide range of metal steel barricades help with managing pedestrian traffic, crowd control and safety. 90" L × 42" H heavy duty steel barricade has more stable and stronger structure than standard steel barricade in same size.
Contact Info
Product Details
System Components
Detailed specifications
- Length: 90" long
- Height: 42" high
- Main frame: 1-5/8" OD × 16 gauge thickness
- Grill: 18 uprights of 3/4" OD × 16 gauge thickness.
- Upright spacing: 4.7"
- Feet: flat/bridge/fixed
Barrier panels
The crowd control barrier panels are constructed of frames, infill uprights and interlocking system.
The outer frame and infill uprights are constructed of steel pipes.
The interlocking system are manufactured from steel plates and steel rods.
- Steel pipe material for high strength and impact resistance.
- Hand welding for optimum strength.
- Hot dipped galvanised or powder coated for durability & longevity.
- Easy interlocking system for fast installation and sturdy.
- Withstand harshest environments.
SBS-04: Full welding for optimumstrength.
SBS-05: Easy interlocking system for easy use.
SBS-06: Various colors for different application.
SBS-07: Flexible structure for multiple combination and use.
SBS-08: Hot dipped galvanized to withstand harsh environments.
SBS-09: Perfect stacking for easy storage and transportation.
SBS-10: Reflective sheeting for safe warning.
SBS-11: Shade cloth and customized logos for enterprise display.
Barrier feet
- Fixed Y feet.
- Removable flat T feet.
- Removable bridge Y feet.
- Removable wheel feet.
SB0-12: Fixed feet.
SBO-13: Bridge feet.
SBO-14: Flat feet.
SBO-15: Wheel feet.
- Fixed or removable feet options.
- Bolt-down design optional for higher stability.
- Considerate flat design for reducing tripping hazards.
- Removable feet for easy stacking and storing.
- Fastening pins & hardware to prevent being stolen.
- Wheel design for smooth and easy operation.
SBO-16: Bolt-down design.
SBO-17: Fastening pins
SBO-18: Different size feet
SBO-19: Wheeled feet panels for pedestrian gate.
Applications
- Construction site.
- Public traffic.
- Bike rack barricades
- Concert.
- Demolition site.
- scenic area.
- Sport fields.
- Demonstration.
SBO-20: Construction sites.
SBO-21: Government.
SBO-22: Scenic area.
SBO-23: Demonstration.
SBO-24: Cycle racing.
SBO-25: Sport field.
Production Process
01 / 10
Raw Material Purchase
02 / 10
Raw Material Inspect
03 / 10
Mesh panel design and planning
04 / 10
Mesh panel production preparation
05 / 10
Mechanical drawing of wire mesh
06 / 10
Welding
07 / 10
Frame welding
08 / 10
Coating treatment
09 / 10
Finished product inspection
10 / 10
Packaging and warehousing
