System components

Specifications

Panel Specification
Dimensions (H × W)	6'x 12' (equal to 1.8 x 3.66 m)
Wire diameter	9 ga/2.9 mm, 10.5 ga/2.7 mm, 11 ga/2.3 mm, 11.5 ga/2.4 mm, 12 ga/2.0 mm optional.
Mesh opening	2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Frame O.D.	1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Brace	Cross, vertical, horizontal brace with 1"/2.54 mm round or the same with frame O.D.
Frame structure	360° full welded tubular frame.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Attached way	Mesh wrapped around the flat bar then connect with clamps. Galvanized wire wrapped with steel frame in a rather tension way.
Fence feet Specification
Material	Steel plate, steel solid rod, steel pipe.
Fence feet type	Square, oval, flat
Square/Oval feet Specification
Dimensions (H × W × H)	36" × 13.75" × 20" (915 × 350 × 200 mm) 30" × 18" × 20" (760 × 460 × 200 mm) optional.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Flat feet Specification
Dimensions (H × W × TH)	23.6" × 4.3" × 0.3" (600 × 110 × 8 mm) 35.4" × 3.0" × 0.25" (900 × 80 × 7 mm) optional.
Hole size O.D.	19 mm.
Interior round steel rod/pipe	30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe	30 × 30 × 150 mm.
Rod space	30 mm.
Surface treatment	Hot dipped galvanized. Pre-galvanized.
Clamp Specification
Clamp center distance	80, 90, 100 mm optional.
Applied post O.D.	25, 28, 32, 38, 40, 42 mm optional.
Clamp TH	4 mm.
Bolt	Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut	15.9 mm, 17 mm optional.
Surface Treatment	Hot dipped galvanized. Pre-galvanized.
Weight	0.42 kg/set.
Accessory List	2 pieces clamps with 1 bolt and 1 nut.

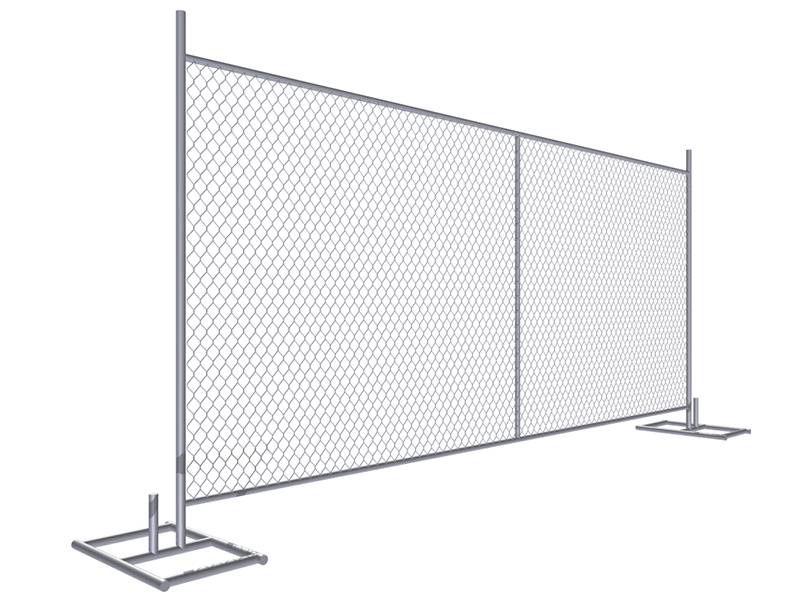

• 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.
• Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
• Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.



• Strong corrosion surface treatment.
• Hot dipped galvanized. To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.
• Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anti- corrosion can satisfy the normal applications



• No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes on the flat feet to peg the footing on the ground when the install completes. Besides, there are fixed sand bags for anchoring.
• Adaptable to all site-specific requirement. With good regional adaptability, the ground is not required to be absolutely flat, neither cement or asphalt areas.
• Stable enough. Technical staff will give a reliable advice of fencing feet size according to the panel dimensions.
• Three different styles are available. We provide following three types of fence feet for your standard and special demand



Another attached way designed for connecting chain link mesh panels and the frame tube together. Use high quality steel plate as raw material, specially moulded into various sizes to match with different size of fencing posts.

• Versatile. Clamp center distance with 80, 90, 100 mm optional can match with fencing post diameter with 25, 28, 32, 38, 40, 42 mm.
• Strong corrosion resistance. With hot dipped galvanized surface treatment, the clamps will not rust even in extremely severe weather.
• Easy installation. Each set of clamp accessory list including 2 pieces clamps with 1 bolt and 1 nut. Just tighten the screws only by hand.



Production process

Specified Grade Of Steel – Pipe Cutting – Welded Temp Fence Panel Frame – Hot-Dipped Galvanized – Chain Link Mesh Woven – Tie the Mesh With Frame – Packing – Shipment



Packing details

Temporary chain link fencing panels are delivered in steel pallets, different loading quantity according to different goods and container sizes.
