1000 mm height constructionbarriers
Construction barriers, temporary perimeter protection barriers, have strongest and robustest steel pipe outer frames and highly visible orange PVC coated chain link mesh fabric. They are widely used in construction sites, civil and infrastructures for crowd control, dangerous warning and event management.
Contact Info
Product Details
All our construction barriers are constructed according to Australia & New Zealand standards:
- AS 1725-2010 – Chain Link Fabric Security Fences and Gates.
- AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use.
- AS 54687-2007 – Temporary Fencing and Hoarding.
Flexible construction barriers with 1 meter high and 1 to 4 meters long. The various lengths can suit different area requirements from very small to very large.
System components
Detailed specifications
| Panel specification | |
| Panel height | 1 m |
| Panel length | 1/2/3/4 m |
| Outer frame | 25 mm OD × 2.0 mm wall thickness (42 microns zinc coating) |
| Chain link mesh infills | 2.5 mm x 50 mm x 50 mm (highly visible orange PVC coated) |
| Surface treatment | Pre-galvanised → welding → galvanised spraying |
| Steel Flat Feet Specification | |
| Feet size | 750 mm (L) × 100 mm (W) × 8.0 mm (T) |
| Surface treatment | Hot dipped galvanised |

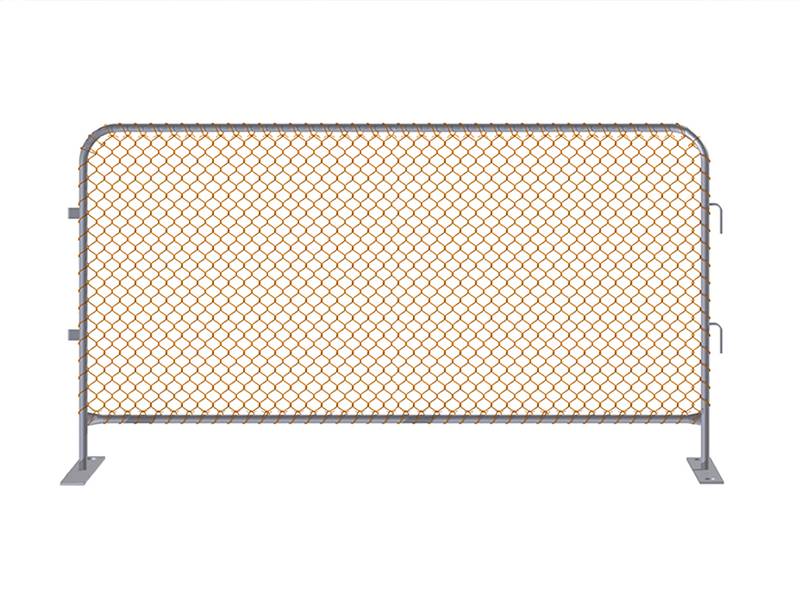

Construction barrier panels
- 25 mm steel pipe outer frame is economical for industrial & commercial use.
- 42 microns standard zinc coating can accommodate to Australia and New Zealand harsh climates.
- Orange PVC coated chain link mesh fabric supplies highly visible for danger reminder and event management.
- Galvanised finish for outer frame and PVC coated finish for chain link fabric supply excellent corrosion and rust resistance performance for the most durable and longest lifespan.
- Comply with Australia standards. We have developed more and more specifications and types construction barriers to suit Australia & New Zealand markets.
- Pre-galvanised before welding and then galvanized spraying production is economical than hot-dipped galvanised finish.
- Light weight and flexible structure make installation easy and fast. It can supply efficient site protection.
- Interlocking system for easy installation and firm connection.
SCB-02: Full welding half-loop for optimum strength.
SCB-03: Hook system is easy and simple for fast installation.
SCB-04: Flat feet can prevent tripping hazards.
SCB-05: High visible chain link mesh for safe protection.
SCB-06: Flattened frame pipe for easy stacking and transportation.
SCB-07: Hand wrapping system for stable structure.
Steel Flat Feet
The construction barriers adopts steel flat T feet:
- Prevent tripping hazards.
- Removable structure for easy storing, transporting & stacking.
- Hot dipped galvanised for long lifespan and durability.
- Bolt-down design is available.
Applications
They are widely used in following areas:
- Construction sites.
- Excavation barriers.
- Repair & Renovation areas.
- Sports events.
- Exhibitions.
- Swimming pools.
- Demolition sites.
- Housing constructions.
- Road projects.
- Festivals.
- School/kindergarten sites.
- Animal barriers.
SCB-08: Construction barriers for traffic control.
SCB-09: Construction barriers for construction site enclosure.
Production Process
01 / 10
Raw Material Purchase
02 / 10
Raw Material Inspect
03 / 10
Mesh panel design and planning
04 / 10
Mesh panel production preparation
05 / 10
Mechanical drawing of wire mesh
06 / 10
Welding
07 / 10
Frame welding
08 / 10
Coating treatment
09 / 10
Finished product inspection
10 / 10
Packaging and warehousing
